LDN4 Series

LDN4 Series

SKU: 193048378481
C$250.00Price

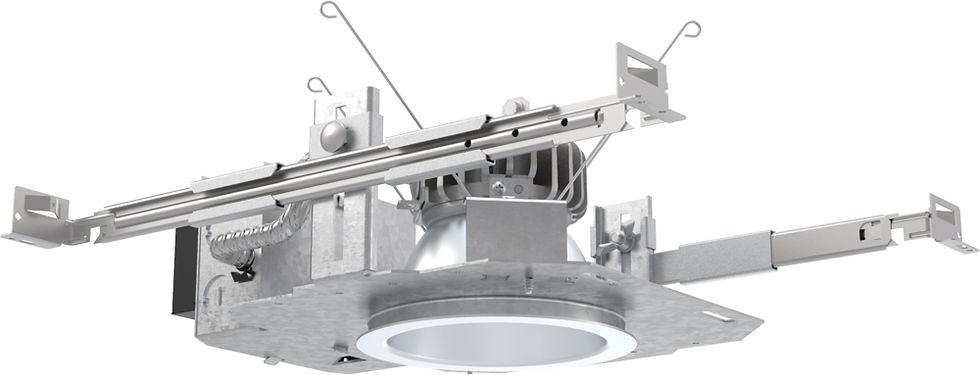

LDN 4” of downlights are the most cost-effective general illumination solution for commercial-grade downlight applications. With 1,000, 1,500 and 2,000-lumen offerings, the LDN4 design allows for a quiet, glare-free ceiling without compromising on efficacy.

  • SPECIFICATIONS

    • 55° cutoff and 75+ LPW
    • 1.0 Spacing/Mounting Height ratio
    • Open wallwash kicker available
    • eldoLED drivers (10% or 1% min dimming)
    • Available with nLight® AIR capability for wireless control and connectivity
    • Configurations support A+ Certified Solutions

  • ELECTRICAL

    • Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
    • 0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
    • 70% lumen maintenance at 60,000 hours.
